Elan Products
CSO
Monitor
The
ELAN Technologies CSO Monitor is designed to monitor and data log
the time and duration of CSO events. The CSO Monitor comes complete
with a data logger in a weather tight case, a precision float switch
or proximity switch and software.
In the field, the sensor is mounted to sense the overflow event.
For a weir wall type, a float switch is supplied and mounted with
the activation point in line with the overflow. For a tide gate
type, a proximity switch is supplied and mounted on the gate. The
supplied cable is then run to the monitor mounted at the manhole
or structure entrance. The sensor connection to the monitor is made
via watertight connector and the gasketed case provides excellent
protection in harsh CSO environments.
In
operation, the logger monitors date and time and logs when an event
occurs. Using the supplied software, the logger is downloaded on
a monthly basis in the field with a laptop PC or disconnected from
the sensor and brought in to a desktop PC to download.

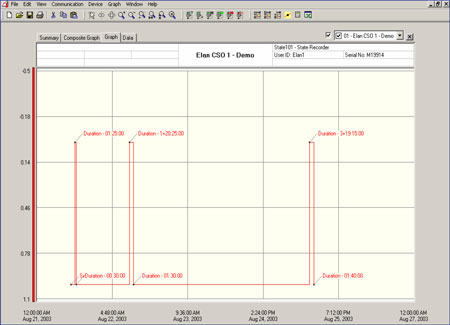

The logged information includes the date and time of when events
started and stopped as well as the exact duration of the event.
This data can then be printed in a report, which can be attached
to a Discharge Monitoring Report (DMR) or used to generate a DMR
for submission to the EPA.
The
logger lasts over one (1) year on a single battery and can accommodate
over a month of data at 5-minute intervals, making it ideal for
meeting CSO monitoring requirements.
Optional Field Installation and Monthly Service. In addition to
equipment, ELAN can offer installation of the ELAN CSO monitor
following OSHA confined space permit procedures. We also offer
a monthly service to download ELAN CSO Monitors and provide you
with data reports for each site, including local rainfall data. Contact
ELAN Technologies for details.
|
